PlantLangTrans VL2
Mobile Cabinet-Type Phenotyping System
Applicable Crops: Green potted plants (H ≤ 50 cm)
Application Environment: Laboratory
Sensor: Visible light 2D
Light Source: Uniform diffuse LED surface light source
View Angles: Top & side views
Acquisition Time: 50s/plant
Analysis Time: 10s/plant
The Mobile Cabinet-Type Phenotyping System(VL2) is a phenotypic measurement and analysis device designed for potted plants. Equipped with visible light 2D imaging units on the top and sides, and integrated with a rotary platform, the system captures phenotypic information of potted plants from multiple angles.
Vertical cabinet unit + 2D imaging control unit + intelligent analysis unit + data management unit
Integrated cabinet with universal casters, allowing flexible movement and placement indoors.
Number of captured images can be customized. Lighting brightness and turntable position are adjustable.
Built-in artificial intelligence algorithms automatically perform image preprocessing and segmentation analysis.
Supports linking experimental samples with phenotypic analysis by scanning the sample’s QR code.
40+ plant parameters can measure
Morphological Parameters(≥16 in total):
Plant height, canopy length, canopy width, canopy spread, height-to-width ratio, plant compactness, leaf rolling degree, plant eccentricity, and plant roundness.
Color Parameters(≥18 in total):
R/G/B color components, RHS color comparison, and other color-related parameters .
Texture Parameters(≥6 in total):
Smoothness, uniformity, and other texture-related indices.
After repeated validation, the system can be applied to the following applications：

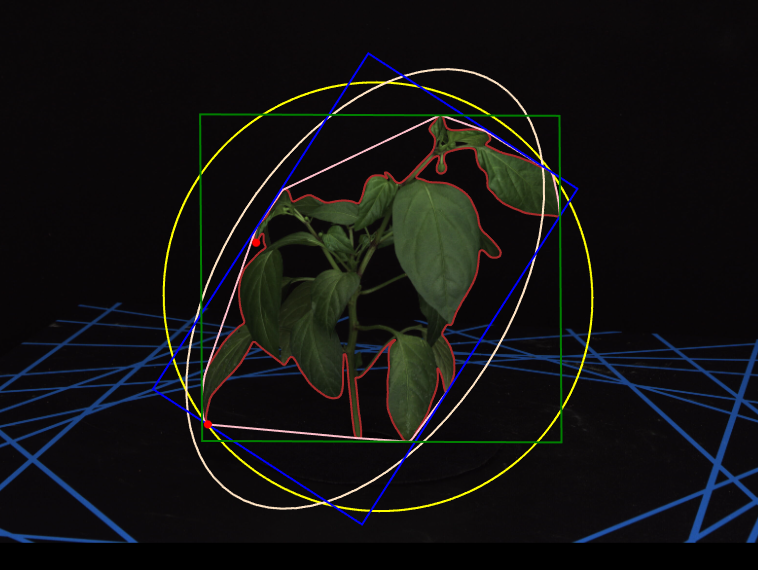

Chilli
Wheat

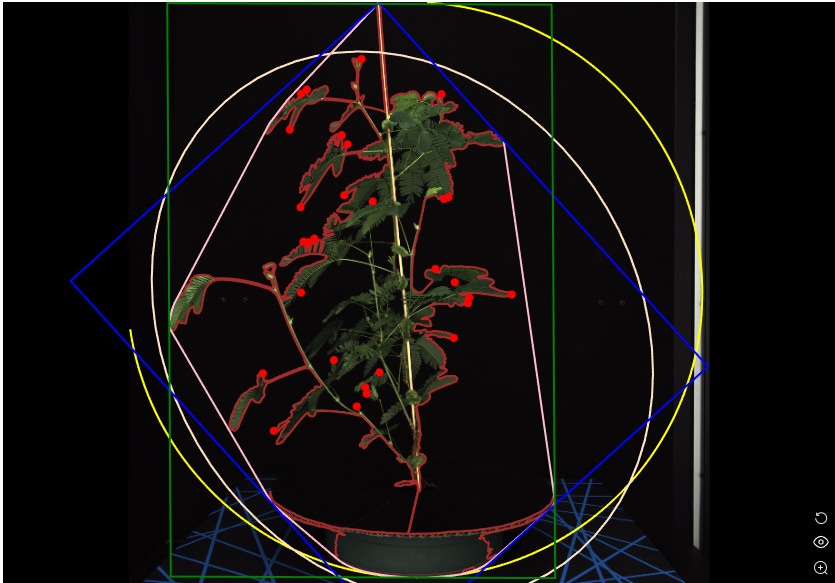

Mimosa
